6mm x 1c XLPE/PVC 5kV Primary Cable

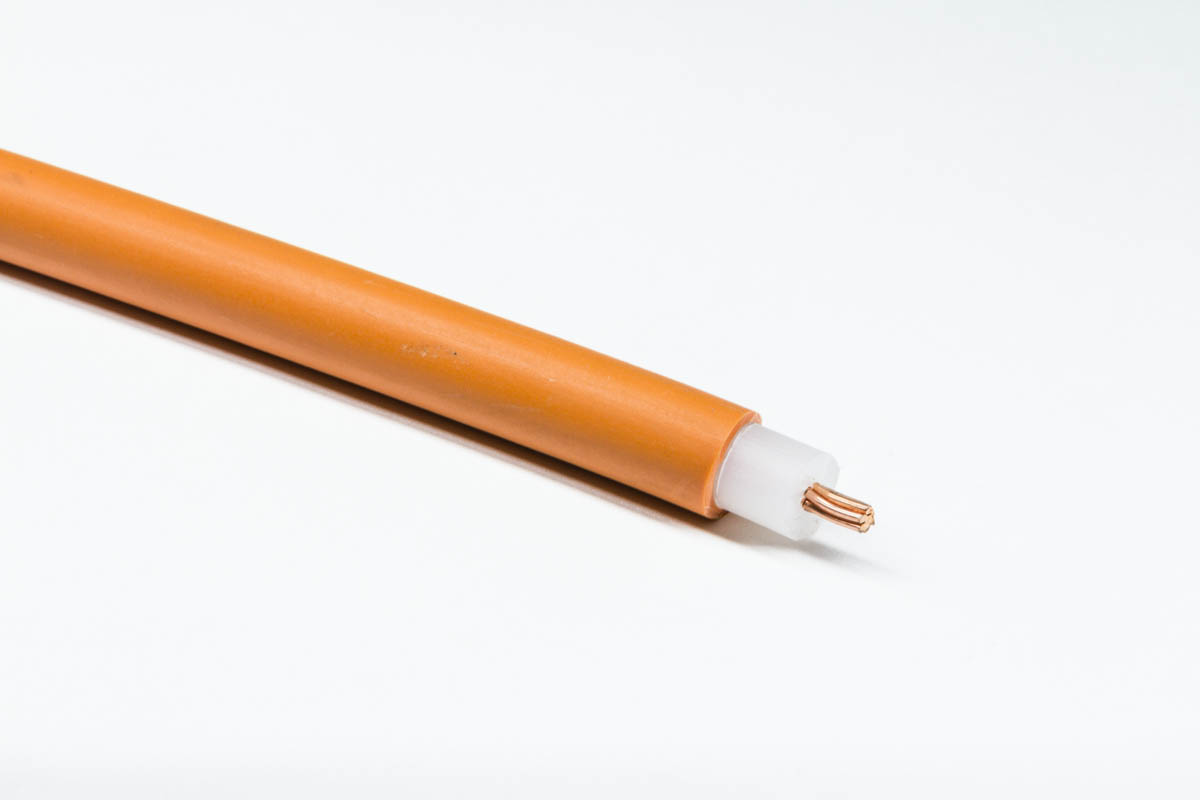

Image of 6mm x 1c XLPE/PVC 5kV Primary Cable

This primary airfield lighting cable (AGL) is designed for use in primary series circuit for connection of transformers to the constant current regulator.

Enquire about this Product Print

Specifications

  • Manufactured in accordance with FAA specification AC 150/5345-7D (L-824)

Conductors

  • 7 x 1.04mm stranded class 2 copper conductors to BS6360

Insulation

  • XLPE - to BS 7655
  • Radial thickness - 3mm

Sheath

  • PVC - to BS7655
  • Radial thickness - 1.15mm

Overall diameter

  • 11.7mm nominal

Voltage rating

  • 5kV

Cable weight

  • Approx 150kg/km

Sheath colours

  • Various colours available on request including striping
