3 Way Locking Style Plug & Socket Kit

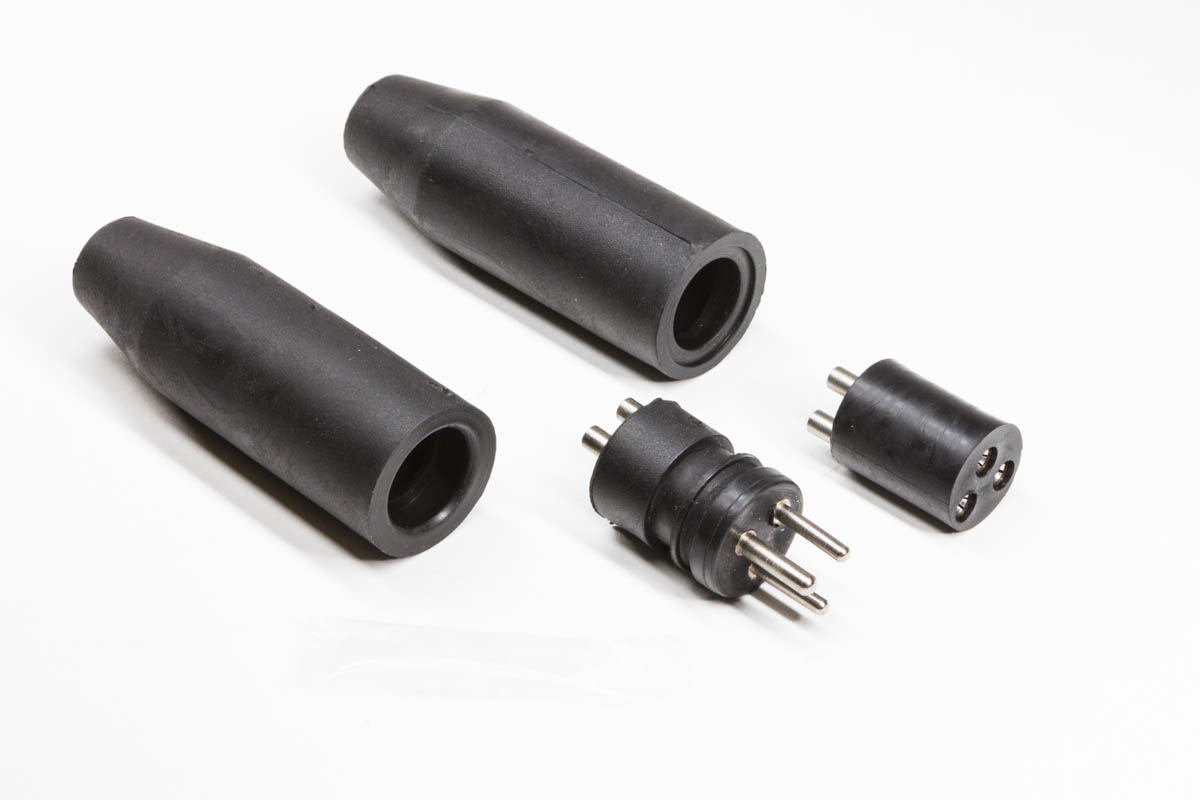

Image of 3 Way Locking Style Plug & Socket Kit

 CDG's 3 Way Locking Style Plug & Socket Kits can be supplied direct to contractors and airports for on-site installations and repairs.  The 3 Way Locking Style Plug & Socket Kits are used for on-site jointing of secondary 2 and 3 core cables (for 2 core cable the large pin for location only).



Enquire about this Product Print

Specification

  • Designed and manufactured utilising the principals of the FAA L-823, Class A specification, AC 150/5345-26

Design

  • Factory moulded using synthetic rubber for its robust and flexible properties
  • Can be assembled to 2 and 3 core 2.5mm cable.

Rating

  • 20 Amps - 600V between contacts - 1500V to ground

Compatibility

The 3 Way Locking Style Plug Kit connects with the following

  • 3 Way Locking Style Socket

The 3 Way Locking Style Socket Kit connects with the following

  • 3 Way Locking Style Plug
