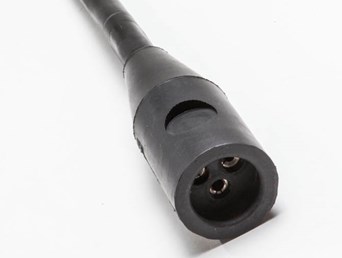

3 Way Locking Style Socket

CDG`s 3 Way Locking Style Socket lead can be supplied to the manufacturers of AGL luminaires or direct to contractors and airports for on-site installations and repairs. The locking style range of plugs and sockets offers additional protection against the ingress of moisture due to the integral locking ring of the moulding. The 3 Way Locking Style Socket can be combined with the 3 Way Locking Style Plug to form a prefabricated extension lead.

Enquire about this Product Print

Specification

Designed and manufactured utilising the principals of the FAA L-823, Class A specification, AC 150/5345-26

Design

Factory moulded using synthetic or silicone rubber for their robust and flexible properties
Generally moulded to rubber/TPE sheathed cables, other options include silicone, nylon and PTFE
Can be manufactured using 2 and 3 core cables ranging in conductor size from 1.5mm to 6mm (2 core cable large pin for location only)
Secondary connectors can be manufactured to any specified length
100% visually inspected and continuity tested during the manufacturing process

Rating

20 Amps - 600V between contacts - 1500V to ground

Compatibility

The 3 Way Locking Style Socket connects with the following

3 Way Locking Style Plug
3 Way Locking Style Kit
