Style 5 & Style 12 Connector Kits

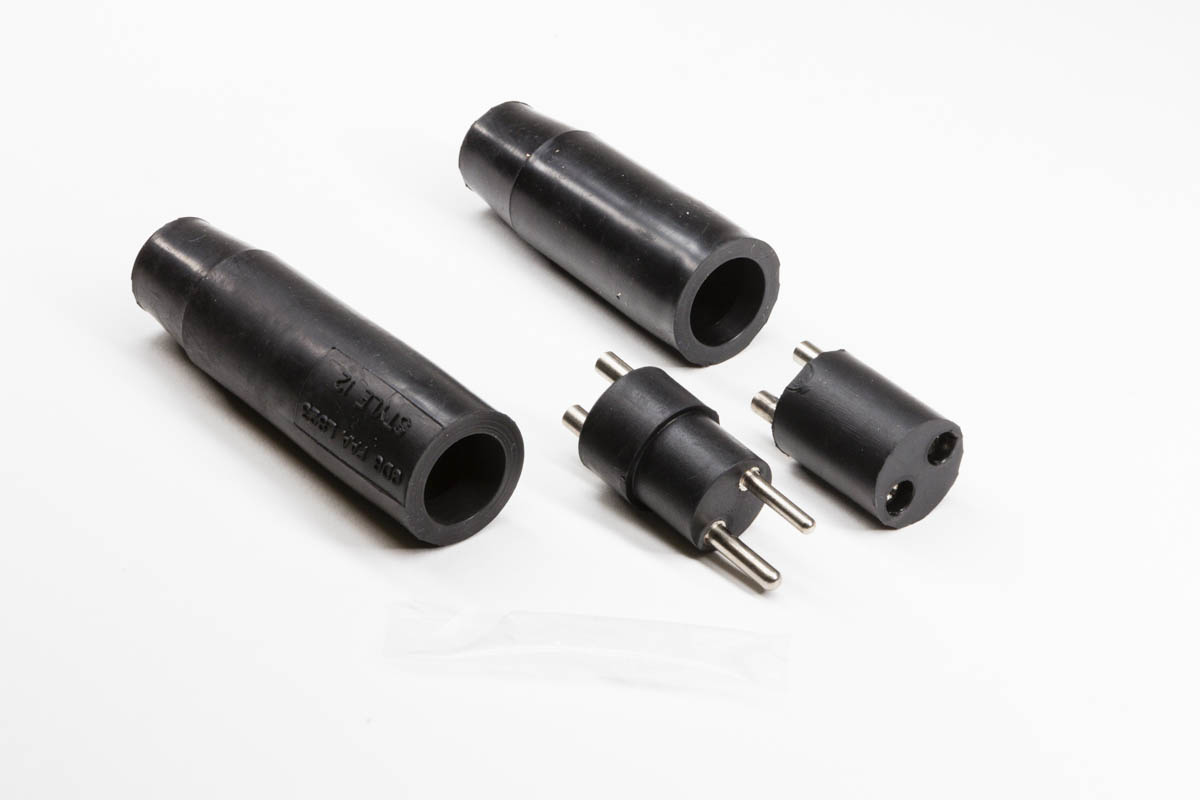

Image of Style 5 & Style 12 Connector Kits

CDG`s Style 5 plug kit & Style 12 socket kits can be supplied direct to contractors and airports for on-site installations and repairs.  The Style 5 plug kit & Style 12 socket kits are used for on-site jointing of secondary twin core cables.

Enquire about this Product Print

Specification

  • Manufactured in full compliance with FAA L-823, Class A specification, AC 150/5345-26

Design

  • Factory moulded using synthetic rubber for its robust and flexible properties
  • Can be assembled to twin core 2.5mm - 6mm cable.

Rating

  • 20 Amps - 600V between contacts - 1500V to ground
  • Independently certified to IP68

Compatibility

The Style 5 plug kit connects with the following

  • Style 7, Style 8, Style 11 & Style 12 connectors

 The Style 12 socket kit connects with the following

  • Style 1, Style 4, Style 5, Style 6 & Mini B type connectors
