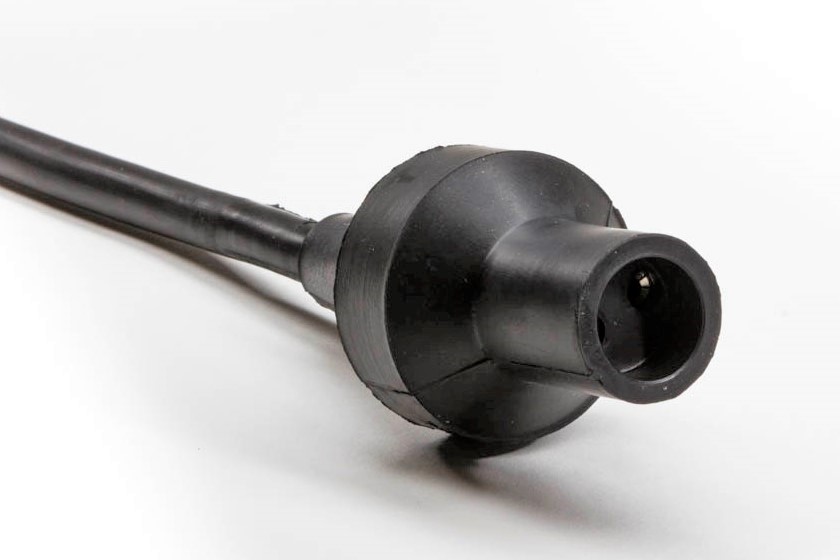

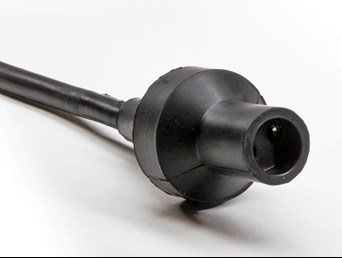

Style 8 Socket

CDG`s Style 8 socket lead can be supplied to the manufacturers of AGL transformer and switching units or supplied direct to contractors and airports for on-site installations and repairs. The Style 8 socket can be combined with the Style 1 plug to form a prefabricated extension lead.

Enquire about this Product Print

Specification

Manufactured in full compliance with FAA L-823, Class A specification, AC 150/5345-26

Design

Factory moulded using synthetic or silicone rubber for their robust and flexible properties
Generally moulded to rubber/TPE sheathed cables, other options include silicone, nylon and PTFE
Can be manufactured using single and twin core cables ranging in conductor size from 1.5mm to 6mm
Secondary connectors can be manufactured to any specified length
100% visually inspected and continuity tested during the manufacturing process

Rating

20 Amps - 600V between contacts - 1500V to ground
Independently certified to IP68

Compatibility

The Style 8 socket connects with the following:

Style 1, Style 6 & Mini B Type plug
Style 4 & Style 5 secondary connector kits
B Type Splitter
